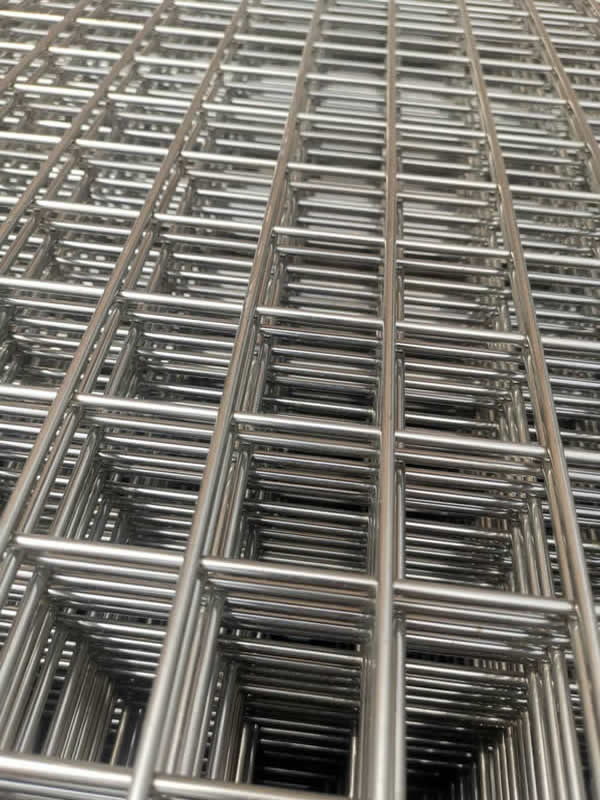

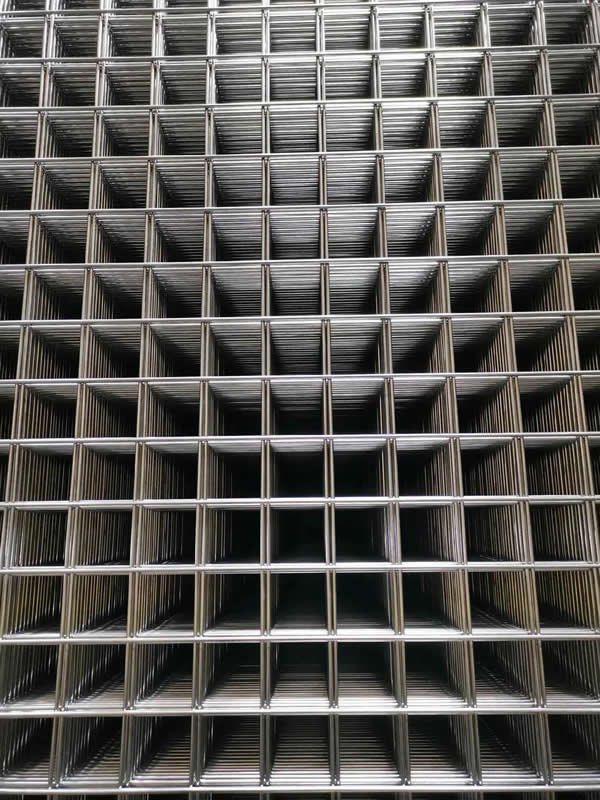

Stainless Steel Welded Wire Mesh

Stainless Steel Welded Wire Mesh is basically used in industrial fencing purposes. It is made up of stainless steel that has high strength and integrity. This corrosion resistance meshed wire is long lasting and is widely used in mining, transportation, agricultural, entertainment and other service sectors.

Stainless Steel Welded Wire Mesh use the common materials: Stainless Steel Grade 304, 316 with the international standard. This kind of welded wire mesh is no need with surface treatment. It has the features of corrosion resistant, being strong and lasting long time.

Advantages:

Stainless Steel Welded Wire Mesh enjoys excellent corrosion resistance, beautiful look, longer work time.

Specifications:

Materials: Stainless Steel Wire:SS304, SS316, SS316L

Wire Diameter: 0.60mm - 5mm.

Welded Mesh in roll: Width, 0.4m - 2m; Standard Length: 30m or 50m. (Needed as request.)

Features:

High quality stainless steel Type 304 and 316.

Superior character of anti-corrosiveness and rust resistance.

Electrically welded for firm welding point, structure and strong collectivity.

Uniform meshes and flat even surface.

A Variety of meshes and sizes selection.

Widely applications in food industry, building, household, etc.

Specifications of Stainless steel welded wire mesh

Mesh Wire diameter
Inch mm BWG mm
1/4" × 1/4 6.4 × 6.4 21 - 31 0.25 - 0.80
3/8" × 3/8" 10.6 × 10.6 19 - 25 0.50 - 1.00
1/2" × 1/2" 12.7 × 12.7 17 - 30 0.30 - 1.50
5/8" × 5/8" 16 × 16 21 - 30 0.30 - 0.80
3/4" × 3/4" 19.1 × 19.1 16 - 27 0.40 - 1.60
1" × 1/2" 25.4 × 12.7 16 - 25 0.50 - 1.60
1-1/2" × 1-1/2" 38 × 38 16 - 25 0.50 - 1.60
1" × 2" 25.4 × 50.8 14 - 22 0.70 - 2.00
2" × 2" 50.8 × 50.8 14 - 15 2.00 - 2.20
3" × 3" 76.2 × 76.2 4 - 14 2.00 - 6.00
